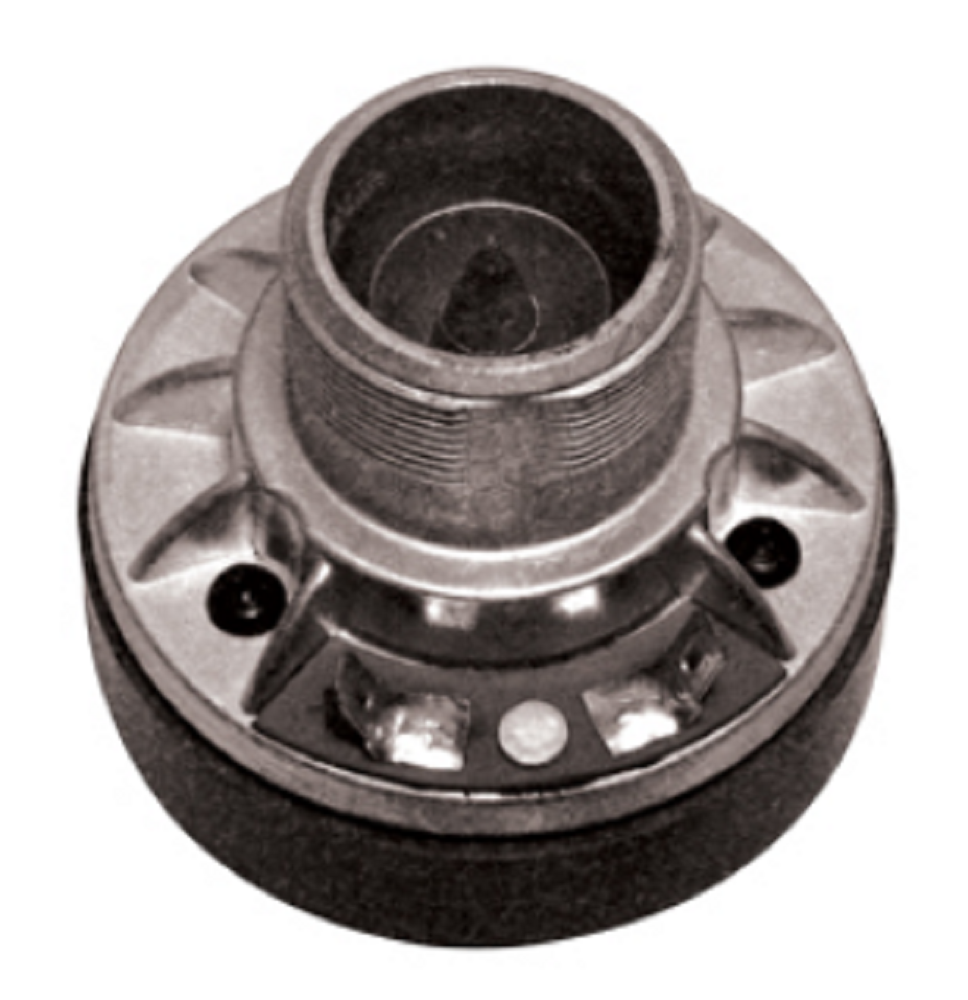

Eminence APT50 Driver 1in 8 Ohm

Specification:

• Throat Size - 1", 25.4 mm
• Nominal Impedance* - 8 Ω
• Minimum Impedance - 7.4 ohm @ 6.1 kHz
• Power Rating - 35W (AES)
• Resonance - 2.1 kHz
• Usable Frequency Range - 3500Hz - 20kHz
• Recommended Crossover - 3.5 kHz / 12 dBkHz
• Sensitivity *** - 104.7
• Magnet Material - Ferrite
• Magnet Weight - 0.23 kg
• Voice Coil Diameter - 1", 25.4 mm
• Voice Coil Former - Kapton
• Diaphragm Material - Phenolic
• DC Resistance (Re) - 6.3 Ω
