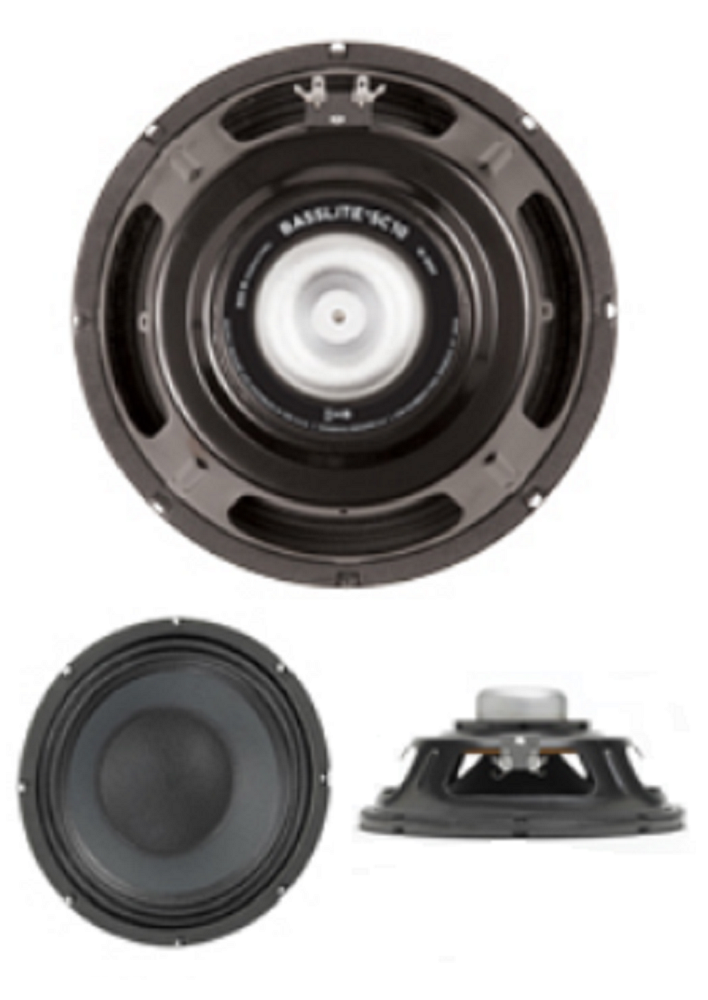

Eminence BASSLITE SC10-16 10in 150w 16 Ohm Bass Guitar Speaker
Eminence BASSLITE SC10-16 10in 150w 16 Ohm Bass Guitar Speaker
SKU: BASSLITE SC10-16
Regular price
$289.99
Regular price
$289.99
Sale price
$289.99
Unit price
/
per
Couldn't load pickup availability
Featuring a 4 oz. neodymium magnet and 2-inch voice coil, this replacement speaker is optimized specifically for sealed bass cabinets. The ultra-lightweight Basslite SC10 takes the weight out and leaves in the performance.
Specification
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | 300 W |
| Watts | 150 W |
| Resonance | 46 Hz |
| Usable Frequency Range | 50 Hz - 4.2 kHz |
| Sensitivity* | 94.3 dB |
| Magnet Weight | 4 oz. |
| Gap Height | 0.28", 7.1 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 46 Hz |
| DC Resistance (Re) | 12.21 Ω |
| Coil Inductance (Le) | 0.89m H |
| Mechanical Q (Qms) | 2.23 |
| Electromagnetic Q (Qes) | 0.56 |
| Total Q (Qts) | 0.45 |
| Compliance Equivalent Volume (Vas) |
78.27 liters / 2.76 cu.ft.
|
| Peak Diaphragm Displacement Volume (Vd) | 154 cc |
| Mechanical Compliance of Suspension (Cms) | 0.46 mm/N |
| BL Product (BL) | 12.79 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 26 grams |
| Efficiency Bandwidth Product (EBP) | 81 |
| Maximum Linear Excursion (Xmax) | 4.4 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced |
0.03 cu.ft. / 0.84 liters
|
| Overall Diameter | 10.08", 256 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108 mm |
| Net Weight | 3.5 lbs, 1.59 kg |
| Shipping Weight | 4.6 lbs, 2.09 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Non-vented core |
| Basket Materials |
Pressed steel basket
|
| Cone Composition | Curved paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition |
Solid composition felt dust cap
|
